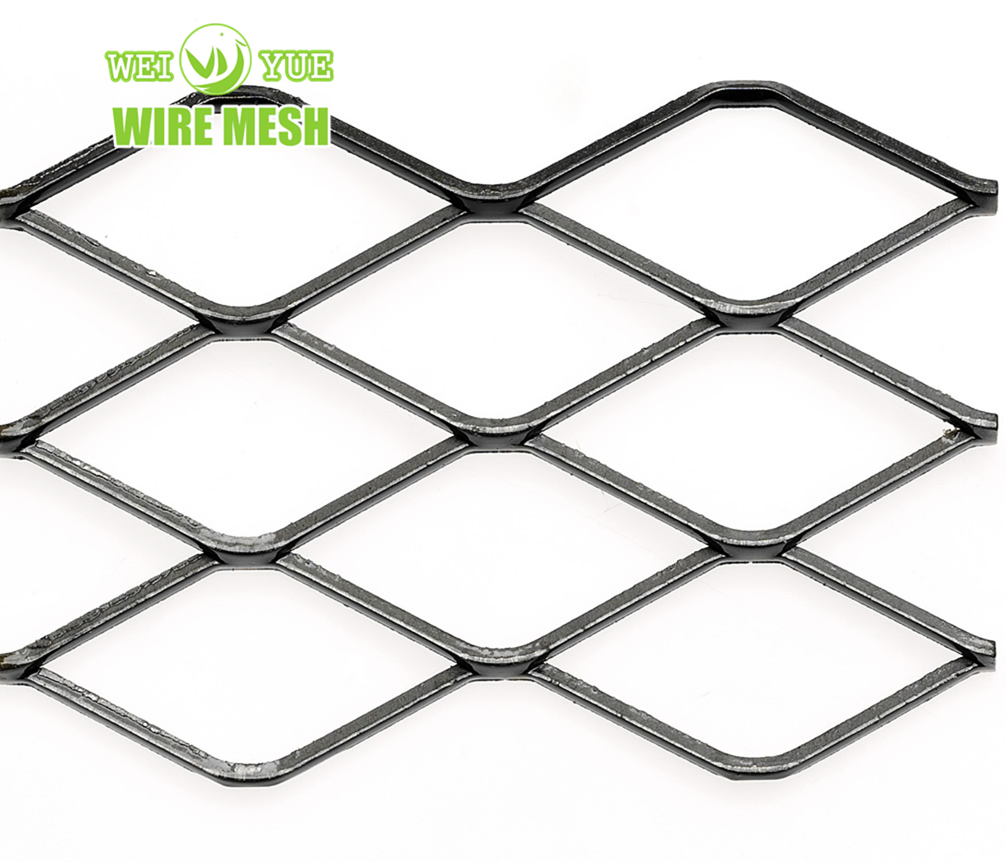

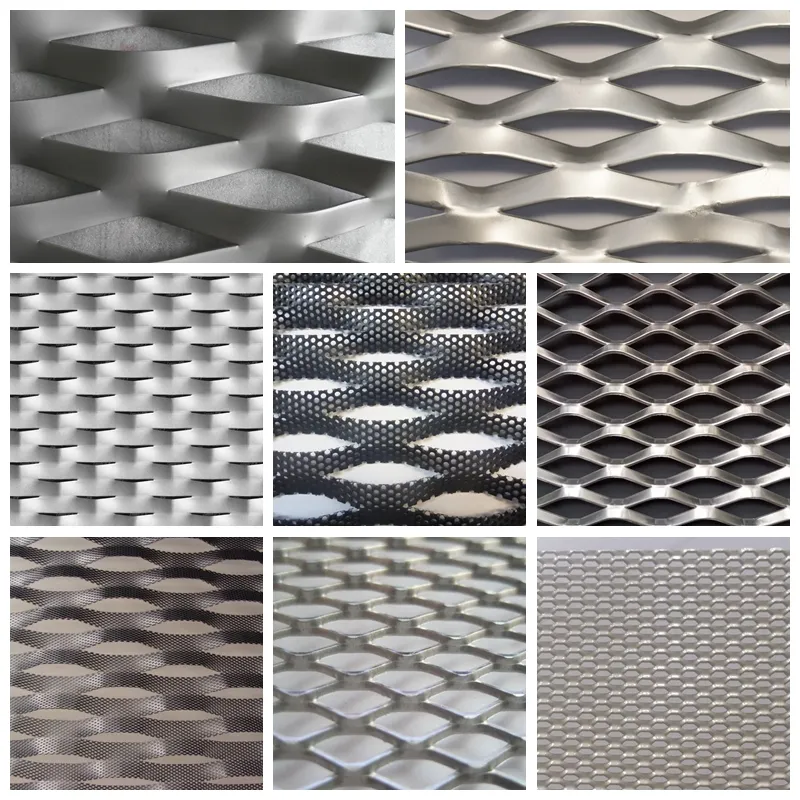

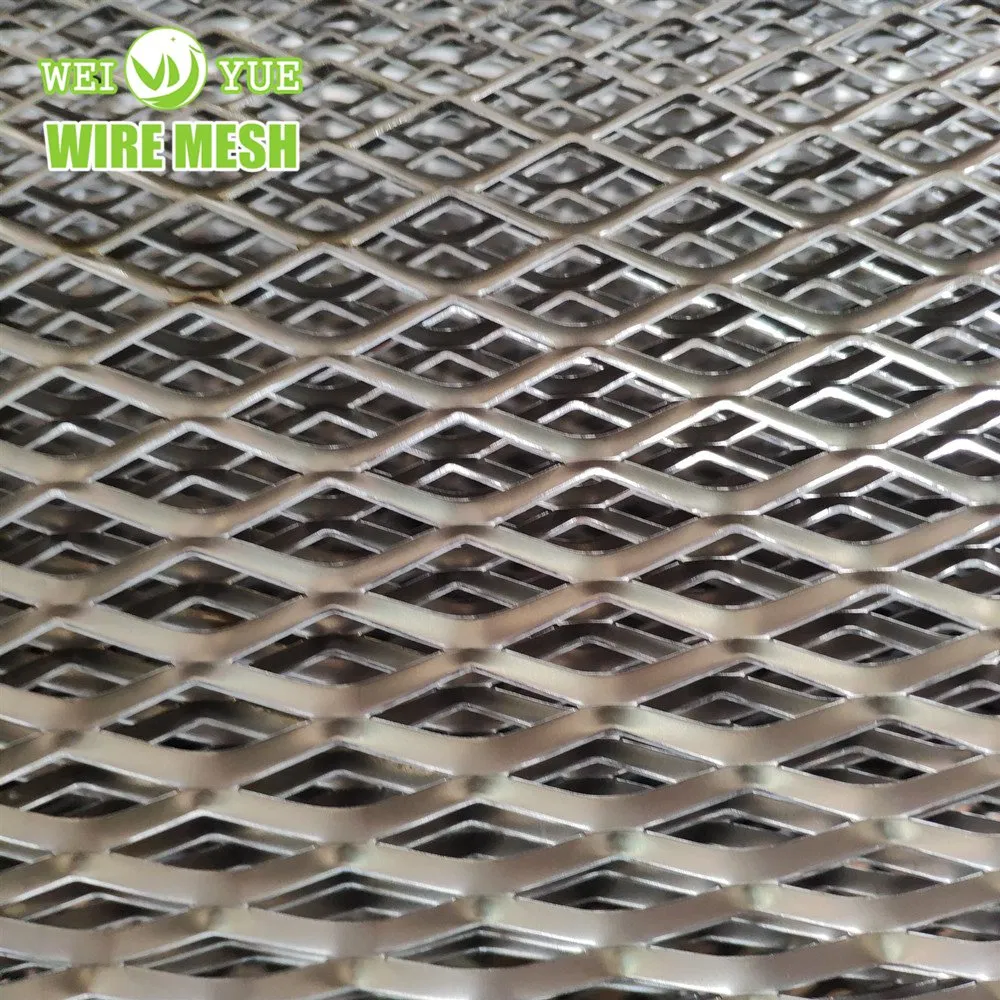

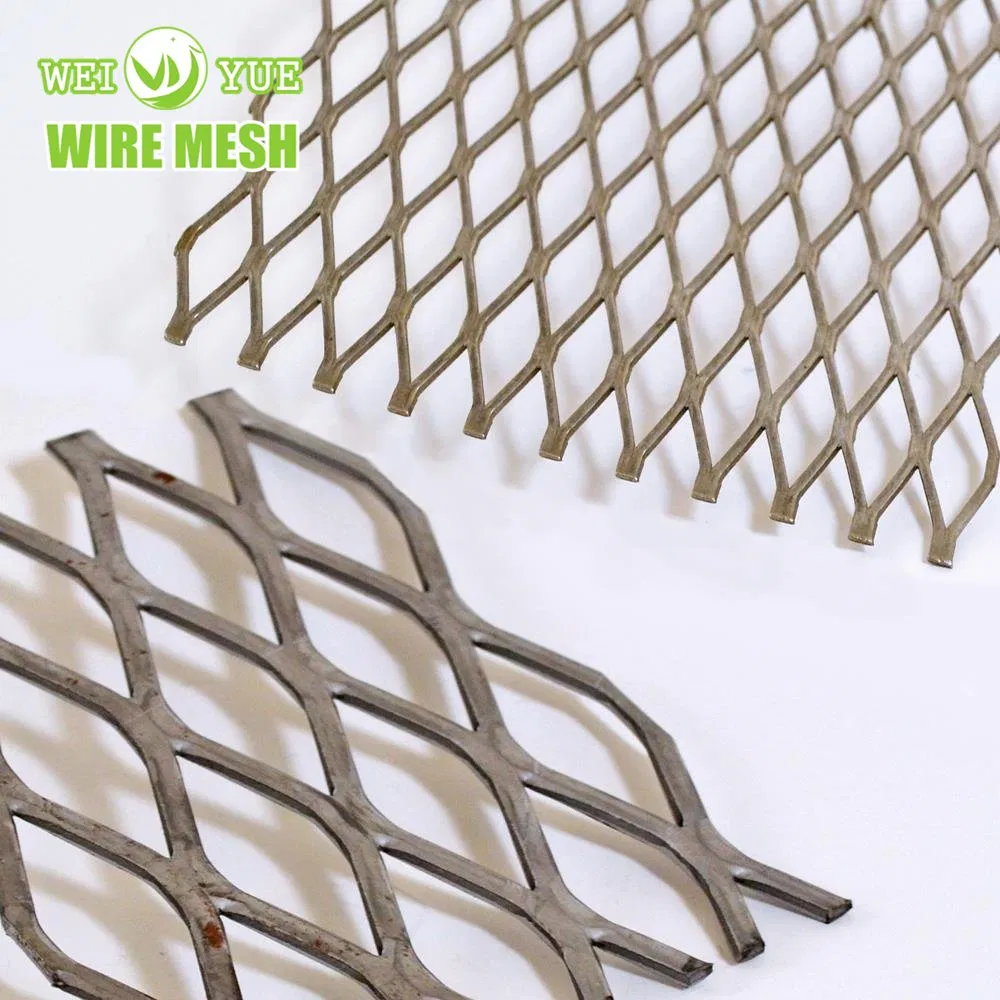

Expanded metal mesh or expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press. The sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.
Expanded metal mesh is a very economical and practical way to assure strength and safety, making it ideal for EMI/RFI shielding, furniture, security walls, protection covers, floors, doors, and fencing.
| Thickness (mm) | SWD (mm) | LWD (mm) | Strand (mm) | Width (m) | Length (m) | Weight (kg/m2) |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |

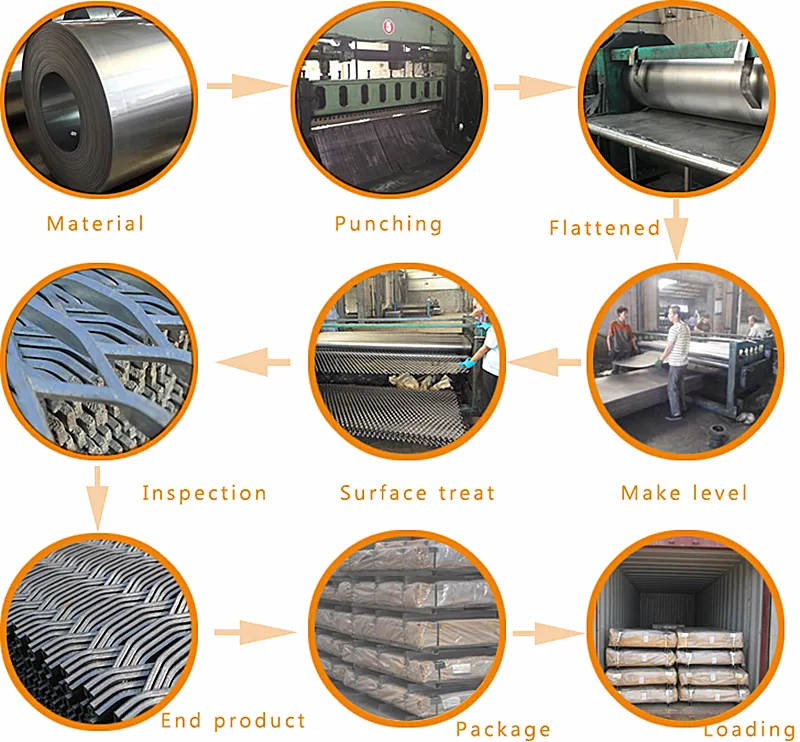

Production Process:

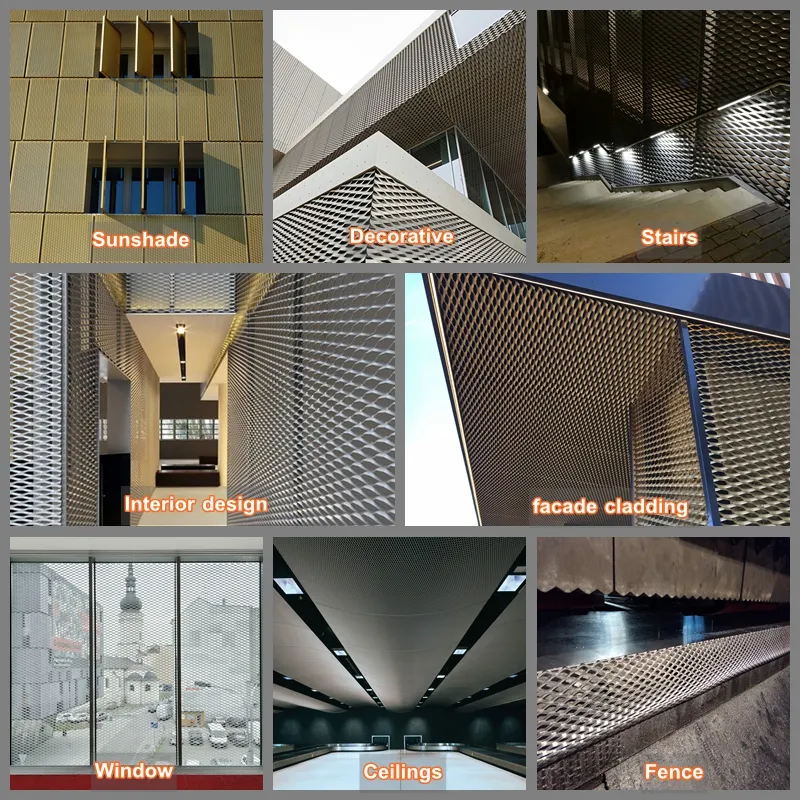

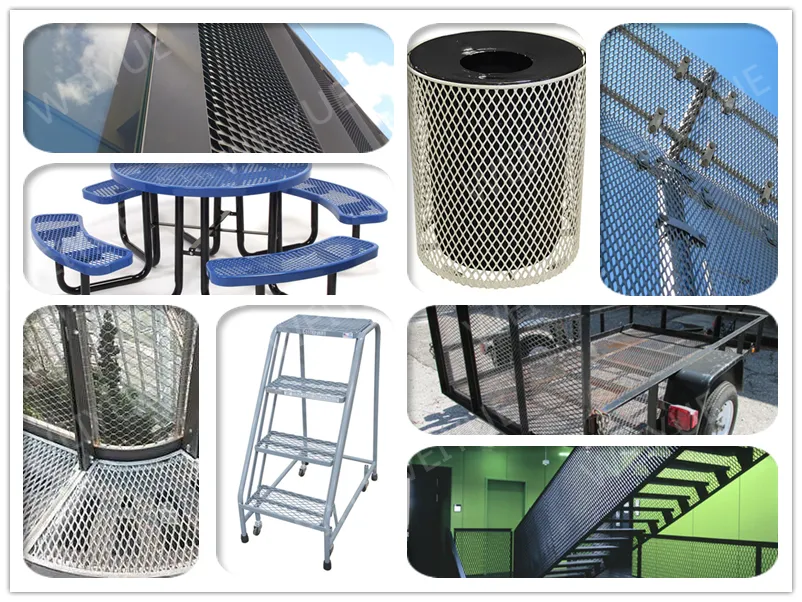

Application Examples:
A: It is cost-effective, provides excellent strength-to-weight ratio, allows for light and air flow, and has a slip-resistant surface, making it ideal for walkways and safety guards.
A: We commonly use carbon steel, stainless steel, and aluminum. Specialty materials like brass, copper, and nickel are also available upon request.
A: Yes, we can produce various mesh lengths and widths according to specific client requirements, with thickness options ranging up to 8.0mm.

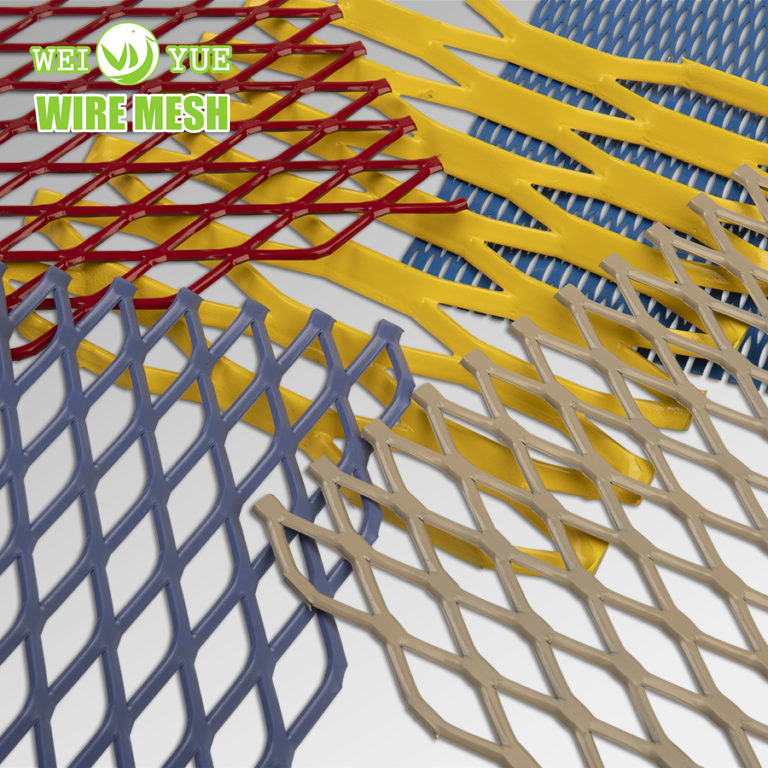

A: Popular treatments include PVC coating and hot-dip galvanizing, which significantly enhance the mesh's durability in outdoor or harsh environments.

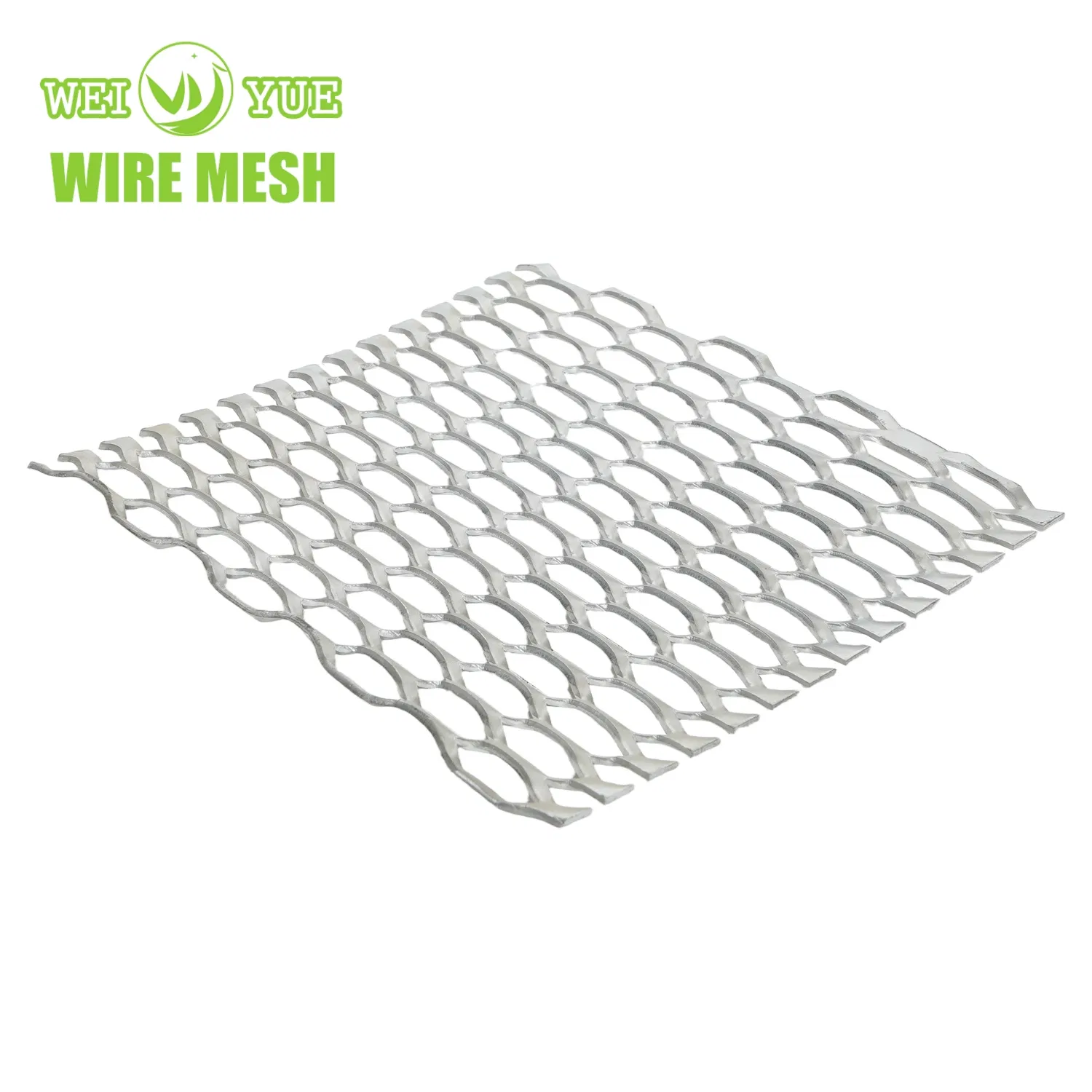

A: Standard expanded metal has a raised surface providing extra grip, while flattened expanded metal is passed through a cold rolling mill to create a smooth, flat surface.
A: Absolutely. Our expanded metal grating made from heavy-gauge carbon steel plates is specifically designed for high-strength applications like industrial catwalks and heavy-duty walkways.
