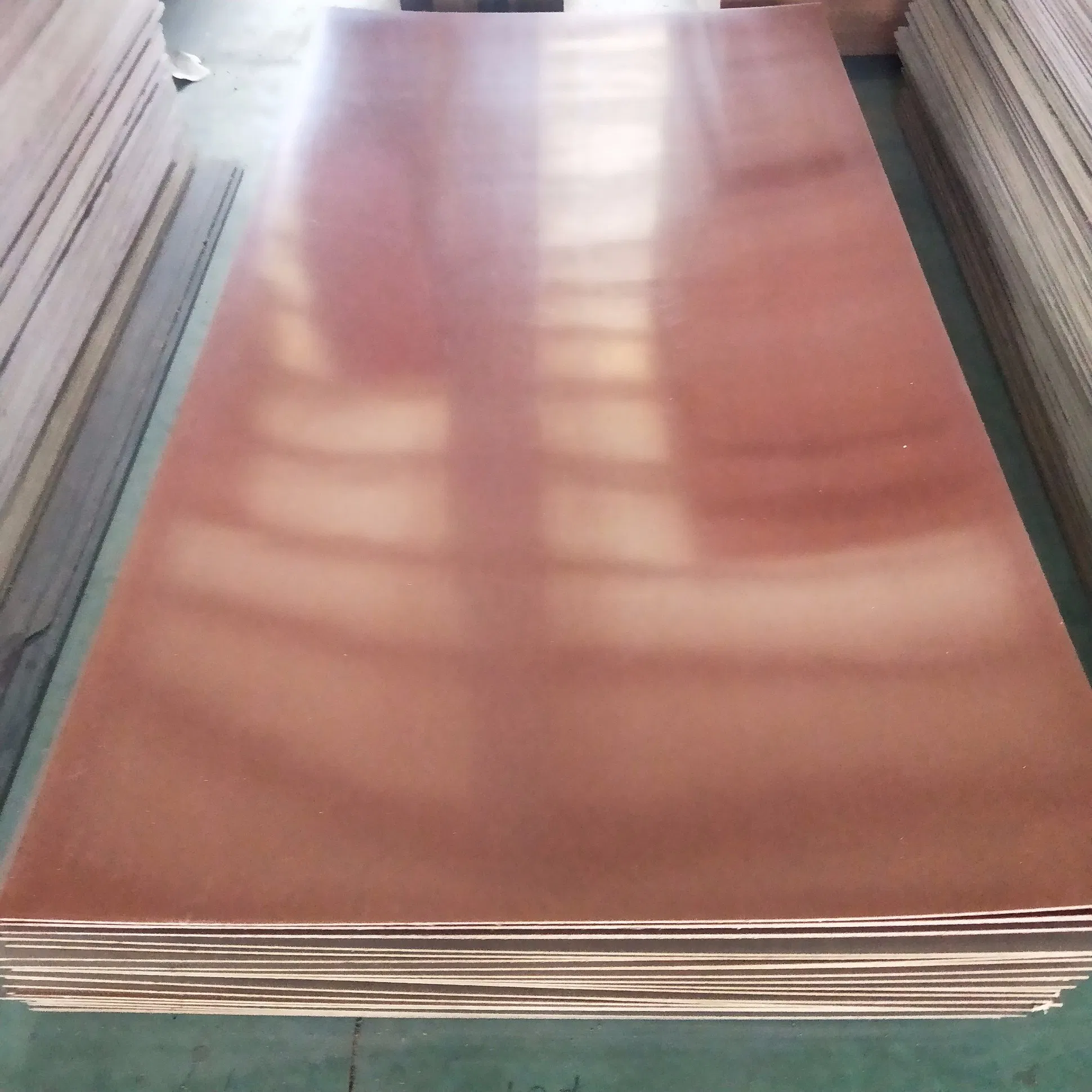

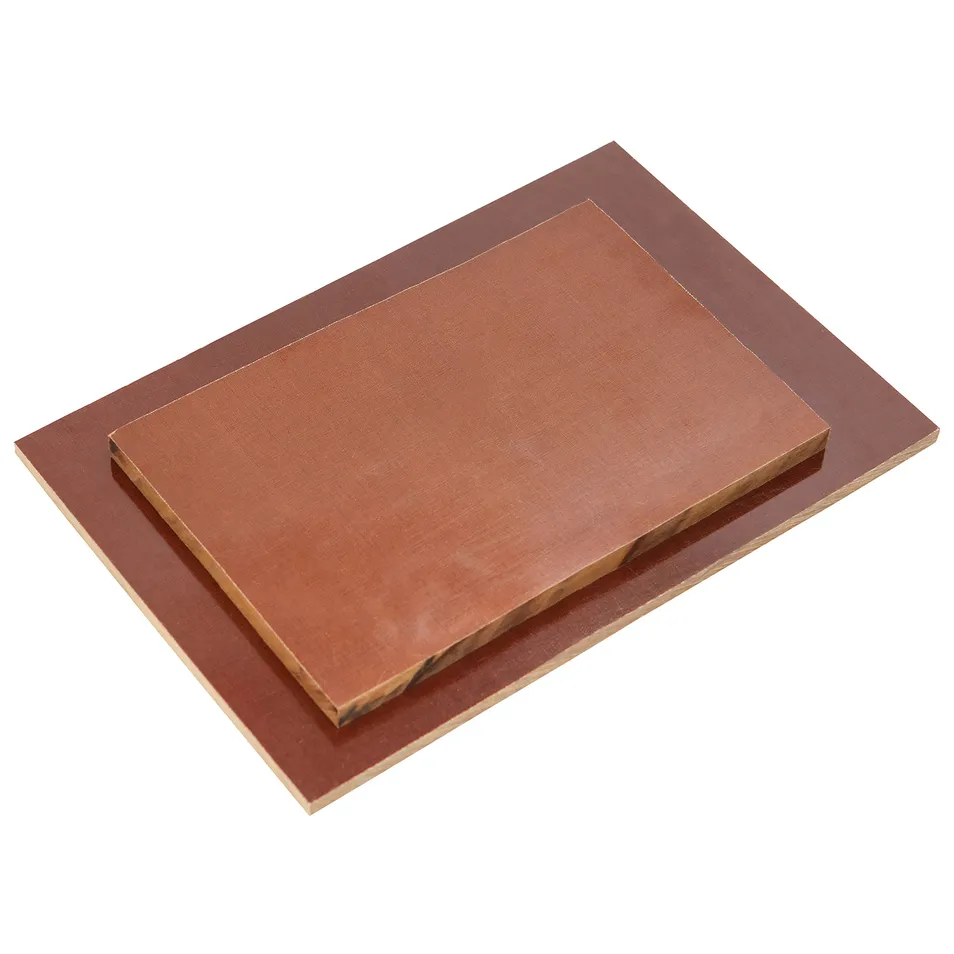

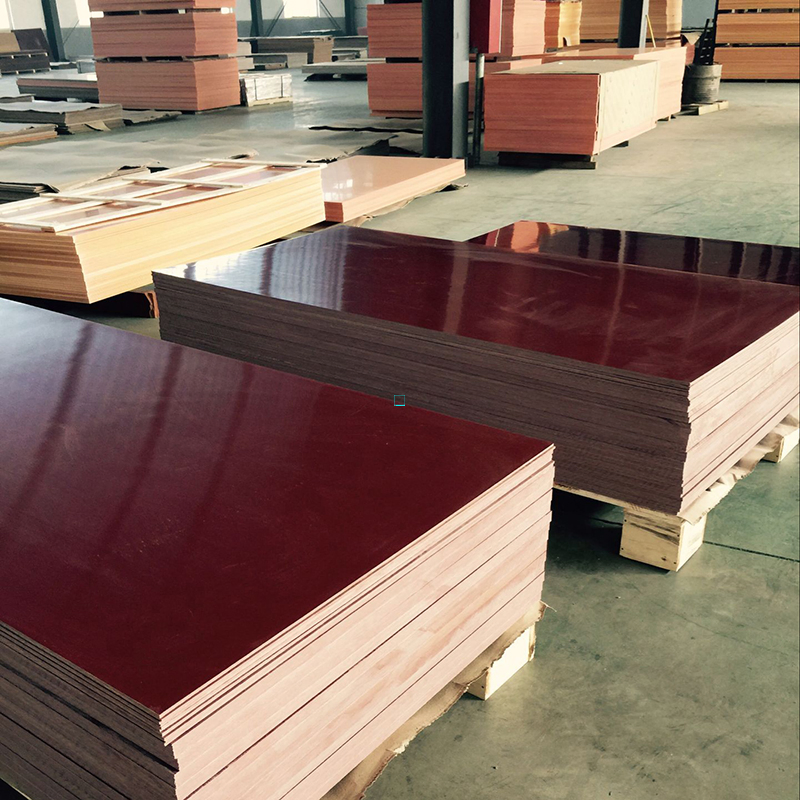

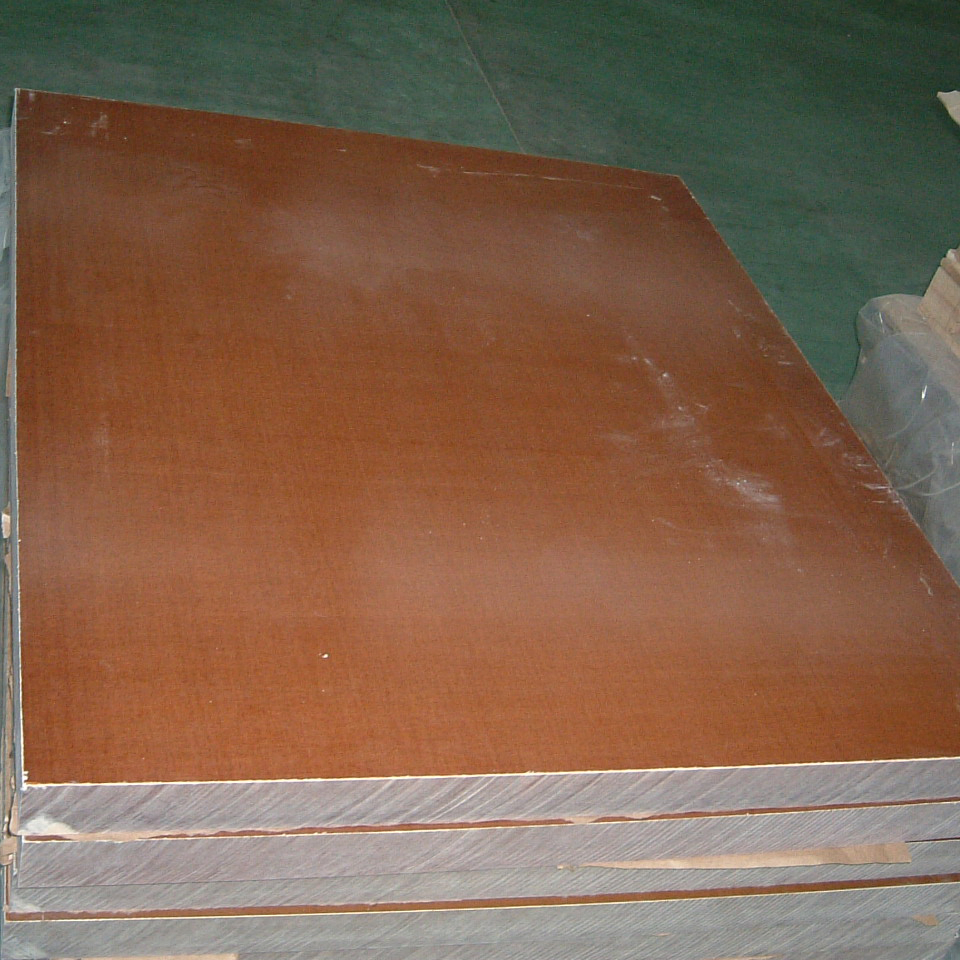

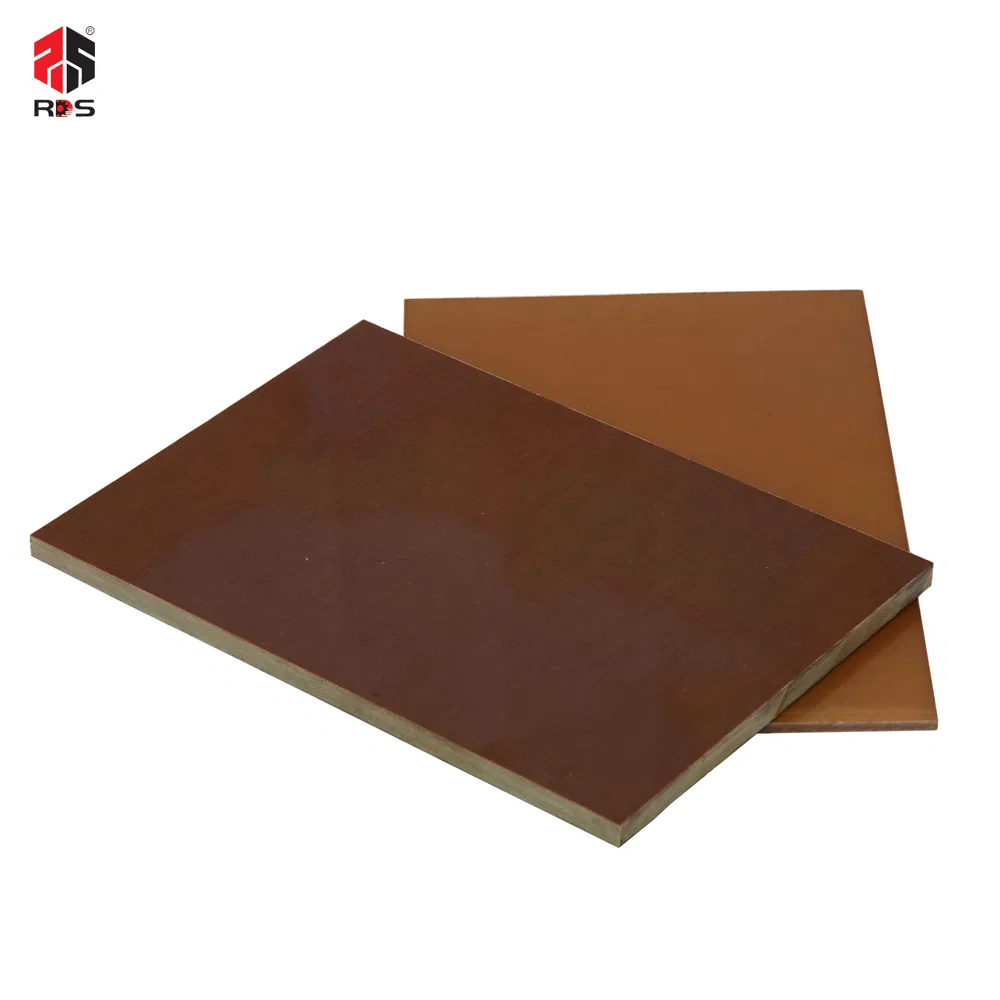

Phenolic Cotton Laminate is made of cotton fabric impregnated with phenolic resin in baking and pressing. Widely used as insulating structure parts in motor, mechanical and electrical equipment, and can be used in transformer oil. With high mechanical property and electrical property. Suitable for being the components of mechanical parts such as the gears, guide wheel, saw guide, etc.
Standards Compliance:
IEC Standard: PFCC201, PFCC202, PFCC203, PFCC204
NEMA Standard: C, CE, L, LE
DIN Standard: HGW2082, HGW2082.5, HGW2083, HGW2083.5
Technical Range:
Thickness: 0.5-100mm | Size: 1020*2020mm, 1020*1220mm, 1220*2440mm
| Items | Unit | Typical Value |
|---|---|---|
| Bending strength | Mpa | ≥110 |
| Impact strength (Parallel layer) | kJ/m2 | ≥7.0 |
| Shear strength (Parallel layer) | Mpa | ≥20 |
| Tensile strength | Mpa | ≥50 |
| Water absorption | mg | ≤540 |
| Vertical Layer Dielectric Strength (90°C Oil) | kV/mm | ≥0.5 |
Dimensions: 30.00cm * 20.00cm * 5.00cm | Gross Weight: 10.000kg
Shipping options available by sea, air, or express. We ensure professional packing to protect goods based on size and hardness requirements.

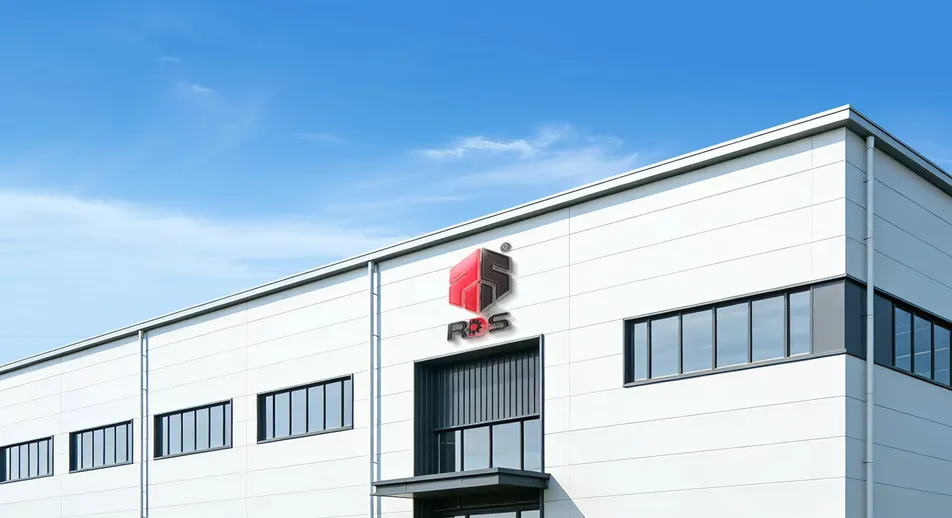

We are a professional producer of insulating materials including glass fiber reinforced molding parts, glass cloth reinforced laminates, cotton fabric reinforced laminates, and engineering plastics. We provide advanced fabrication for composite materials and high thermal resistant products.
Standard small samples are provided free of charge; customers only cover the shipping costs via courier (UPS, DHL, Fedex, TNT). Customized sizes incur a charge.
For small orders, we accept T/T, Western Union, and PayPal. For bulk orders, 30% T/T in advance and 70% balance before shipment.
Yes, small quantity purchases are available if the required dimensions are currently in stock.
Yes, we can manufacture plastic products according to your specific technical drawings.

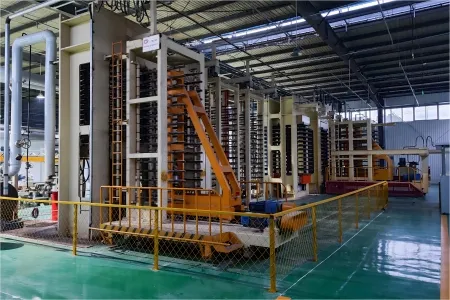

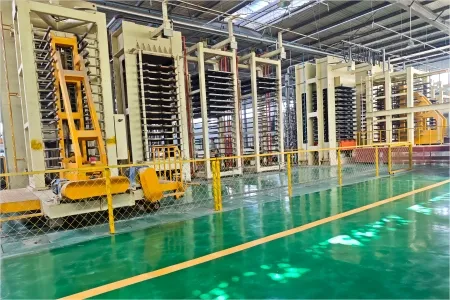

Our facilities include CNC machining centers, CNC lathes, milling machines, and laser engraving machines.
Production capacity is 50 tons per month; specific lead times depend on current inventory and order complexity.
