Product Description

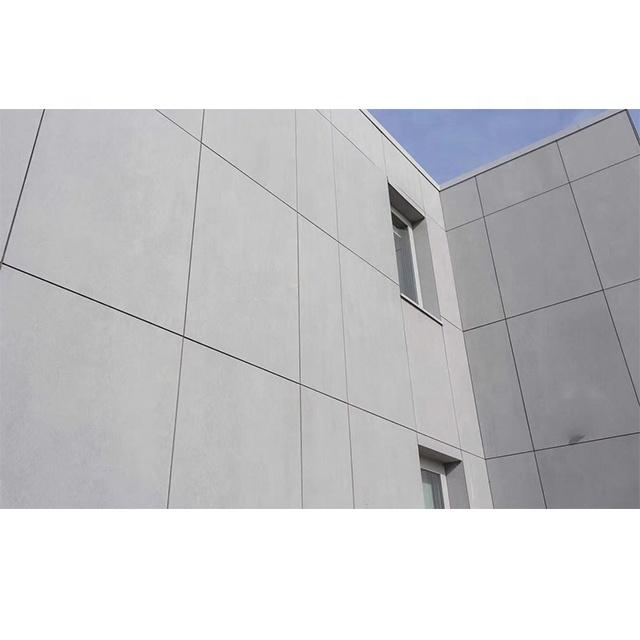

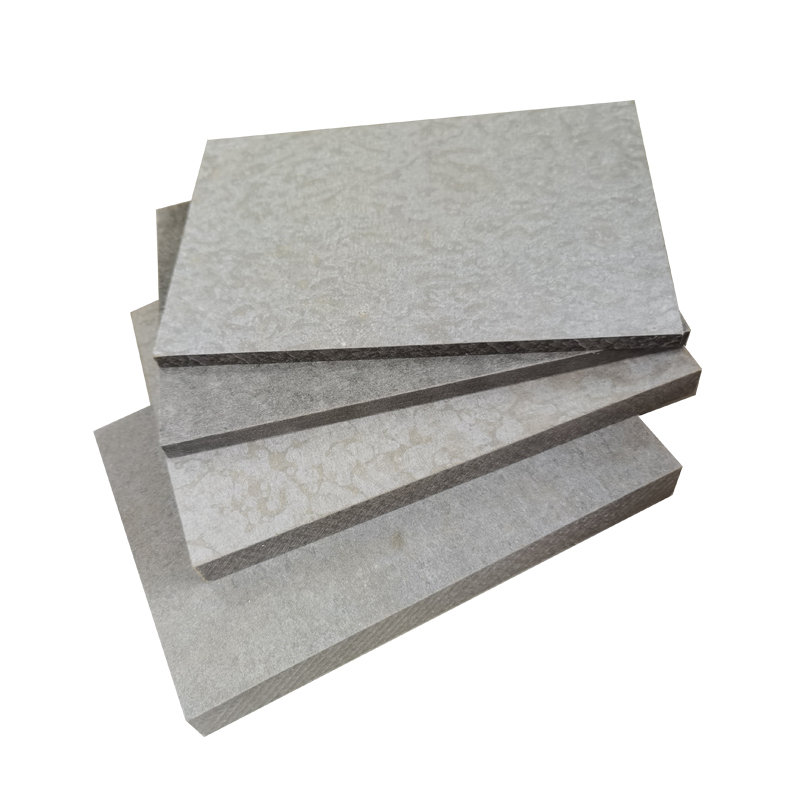

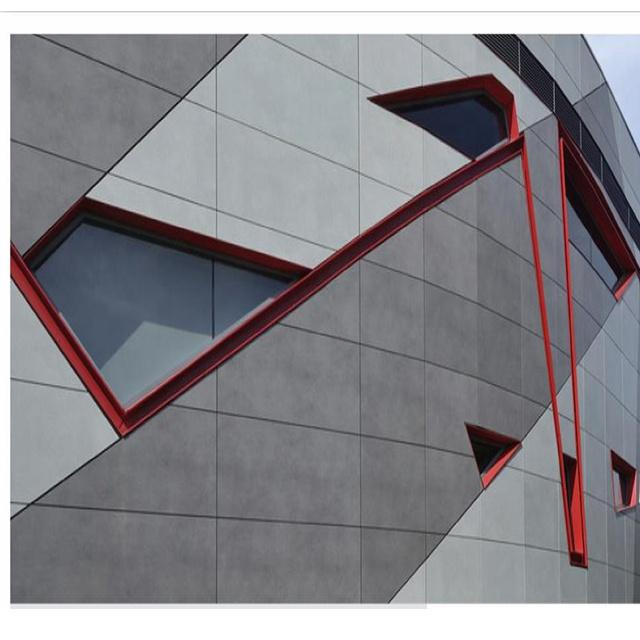

Fiber cement board is a new type of green environmental protection board with excellent performance, such as fireproof, moisture proof, insect-resistant, easy working, thermal insulation, low deformation coefficient and durable. It is widely used for partition wall, exterior cladding and floor in offices, hospitals, factory buildings, villas, theaters and various art buildings.
| Property |
Specification / Value |
| Thickness (mm) | 5-30 mm |
| Width (mm) | 1220 mm |
| Length (mm) | 2440, 3000 mm |
| Density | 1.2-1.6g/cm3 |
| Thermal conductivity | ≤0.29 W/(m.k) |
| Water absorption | ≤28% |
| Bending strength (Oven dry) | ≥16 Mpa |
| Non-combustibility | Class A |
| Features | Waterproof, Fireproof, Moisture proof, Sound insulation, Easy installation |

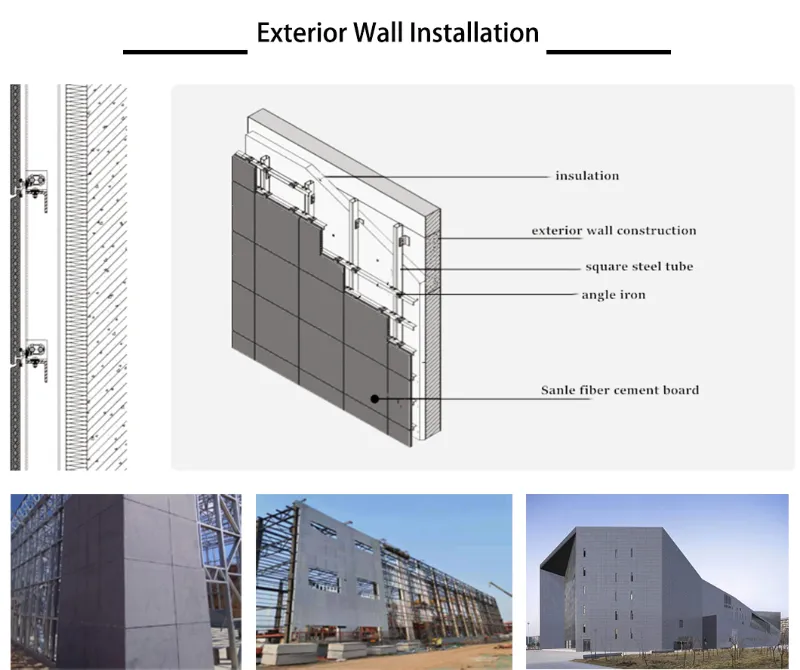

Exterior Wall Installation Method
Preparation: Install supporting aluminum accessories on the back of the board based on design requirements.
Wall Marking: Clean the wall surface and mark position lines for the steel frames.
Keel Installation: Fix angle iron and vertical square steel tubes. Ensure perpendicularity using hanging steel wires.
Board Mounting: Use aluminum accessories to connect panels to the keel, adjusting horizontal and vertical alignment.
Joint Treatment: Use fiber cement powder mixing glue to fill seams and apply special coating.

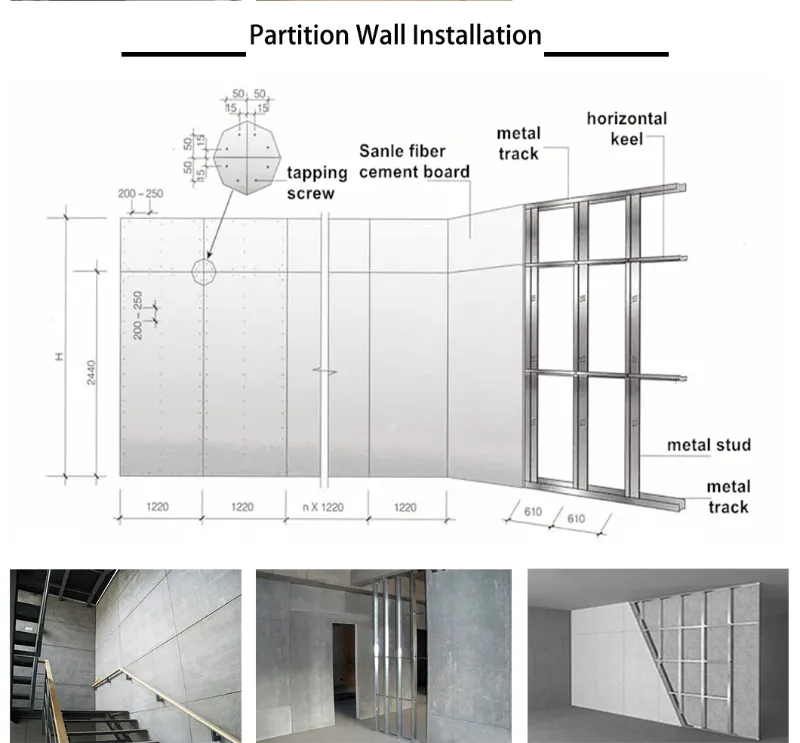

Partition Wall Installation
Fix top and bottom keels with expansion bolts.
Align vertical keels (generally spaced at 612mm).
Cut board material about 10mm lower than wall height.
Fix boards using tapping screws with 200~250mm intervals.
Keep a 4mm expansion seam between boards.

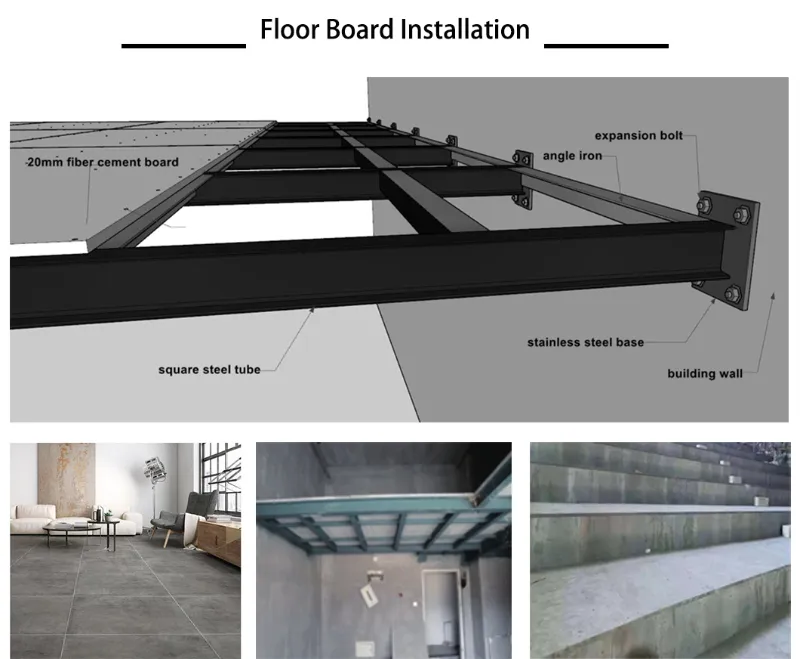

Floor Board Installation
Steel Structure Selection: For spans within 8m, use 15H steel for main beams and #10 channel beam for secondary beams.
Polish welding seams flat before laying boards.
Longitudinal direction of boards should be parallel to the main beam.
Leave a 3-5mm gap between boards.
Use countersunk head tapping screws (M5*45mm) for fastening.

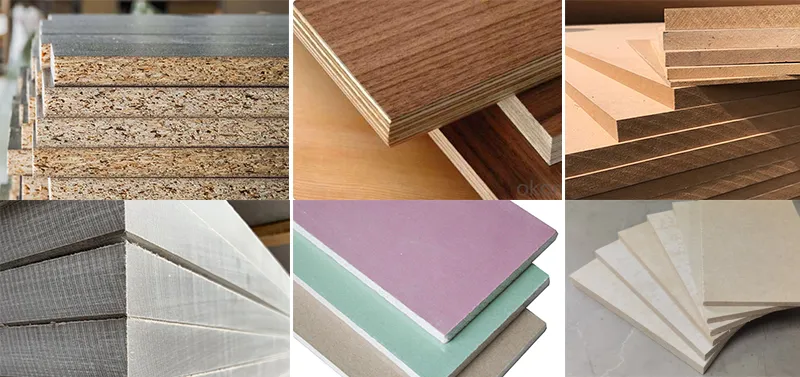

Main Product Applications
Plywood, MDF board, Particle board, Chip board, Gypsum board, Fiber cement siding board, Non-asbestos cement board, Calcium Silicate Board etc.
Frequently Asked Questions

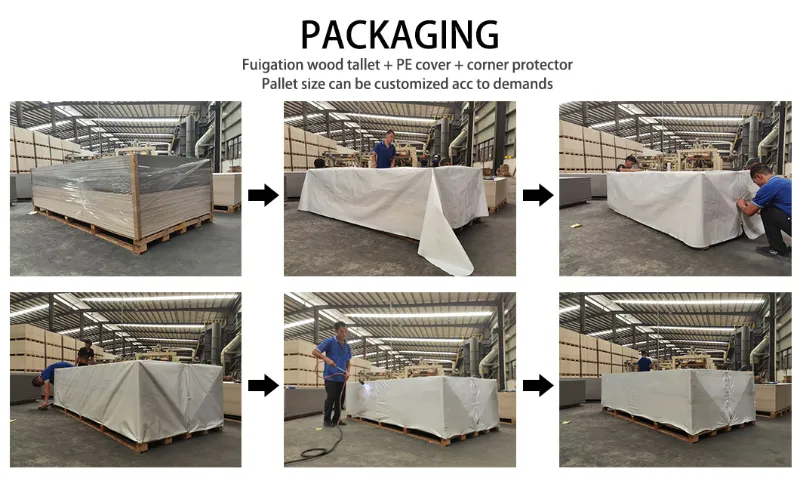

What are your terms of packing?
Generally, we pack our goods in bundles or wood pallets. We can also provide packaging according to specific customer requests.
What are your terms of payment?
We accept 30% T/T in advance and 70% during the shipment period, or L/C at sight.
What are your terms of delivery?
Our standard delivery terms include EXW, FOB, CFR, and CIF.
How about your delivery time?
For stock items, we can dispatch goods within 15 days of receiving the deposit. For new production, it typically takes 20 to 25 days.
Can you produce according to a sample?
Yes, we can produce based on your samples or technical drawings. We also have the capability to build molds and fixtures.
Do you provide samples for free?
We can provide samples free of charge; however, the customer is responsible for the shipping costs.
